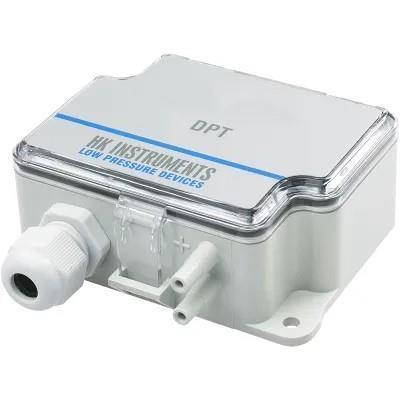

HK Instruments DPT250-R8-AZ – Hava İçin Fark Basınç Sensörü Otomatik sıfırlama (AutoZero) özelliğine sahip diferansiyel basınç transmitteri Temel Teknik Özellikler
Özellik Değer / Açıklama Ölçüm Ortamı Hava ve diğer nötr, yanıcı olmayan gazlar Seçilebilir Ölçüm Aralıkları -25…+25 Pa, -50…+50 Pa, -100…+100 Pa, -250…+250 Pa, 0…25 Pa, 0…50 Pa, 0…100 Pa, 0…250 Pa Otomatik Sıfırlama AutoZero (AZ) fonksiyonu sayesinde sensör, belirli aralıklarla kendini otomatik sıfırlar Çıkış Sinyali 0–10 V DC veya 4–20 mA (kullanıcı tarafından seçilebilir) Besleme Gerilimi 24 V DC / 24 V AC Tipik Uygulamalar HVAC sistemleri, havalandırma kanalı basınç izleme, fan ve filtre kontrolü, temiz oda basınç kontrolü Montaj Duvar veya kanal montajına uygun kompakt muhafaza Koruma Sınıfı IP54 (tipik, montaj koşullarına bağlı) Özet DPT250-R8-AZ, düşük basınç aralıklarında ±250 Pa’ya kadar hassas fark basınç ölçümü sağlar. Entegre AutoZero (oto sıfırlama) özelliği, manuel sıfırlama ihtiyacını ortadan kaldırarak uzun dönemli ölçüm kararlılığı sunar. 0–10 V DC veya 4–20 mA çıkış sinyali ve 24 V DC/AC besleme ile HVAC ve endüstriyel havalandırma uygulamalarında güvenilir ve esnek bir çözümdür.
HK Instruments DPT250-R8-AZ – Differential Pressure Sensor for Air Differential pressure transmitter with AutoZero (automatic zeroing) feature Key Technical Specifications Feature Value / Description Medium Air and other neutral, non-flammable gases Selectable Measuring Ranges -25…+25 Pa, -50…+50 Pa, -100…+100 Pa, -250…+250 Pa, 0…25 Pa, 0…50 Pa, 0…100 Pa, 0…250 Pa AutoZero Function Automatic self-zeroing ensures long-term stability and eliminates manual zeroing Output Signal 0–10 V DC or 4–20 mA (user-selectable) Supply Voltage 24 V DC / 24 V AC Typical Applications HVAC systems, ventilation duct pressure monitoring, fan and filter control, clean-room pressure control Mounting Compact housing for wall or duct installation Protection Class IP54 (typical, depending on installation) Summary The DPT250-R8-AZ is a precision differential pressure transmitter designed for low-pressure air applications up to ±250 Pa. Its integrated AutoZero feature provides automatic periodic self-calibration, ensuring accurate and stable readings without manual intervention. With dual output options (0–10 V DC or 4–20 mA) and a 24 V DC/AC power supply, it is an ideal choice for reliable HVAC and industrial ventilation pressure measurement and control.
HK Instruments DPT250-R8-AZ – Differential Pressure Sensor for Air Differential pressure transmitter with AutoZero (automatic zeroing) feature Key Technical Specifications Feature Value / Description Medium Air and other neutral, non-flammable gases Selectable Measuring Ranges -25…+25 Pa, -50…+50 Pa, -100…+100 Pa, -250…+250 Pa, 0…25 Pa, 0…50 Pa, 0…100 Pa, 0…250 Pa AutoZero Function Automatic self-zeroing ensures long-term stability and eliminates manual zeroing Output Signal 0–10 V DC or 4–20 mA (user-selectable) Supply Voltage 24 V DC / 24 V AC Typical Applications HVAC systems, ventilation duct pressure monitoring, fan and filter control, clean-room pressure control Mounting Compact housing for wall or duct installation Protection Class IP54 (typical, depending on installation) Summary The DPT250-R8-AZ is a precision differential pressure transmitter designed for low-pressure air applications up to ±250 Pa. Its integrated AutoZero feature provides automatic periodic self-calibration, ensuring accurate and stable readings without manual intervention. With dual output options (0–10 V DC or 4–20 mA) and a 24 V DC/AC power supply, it is an ideal choice for reliable HVAC and industrial ventilation pressure measurement and control.
