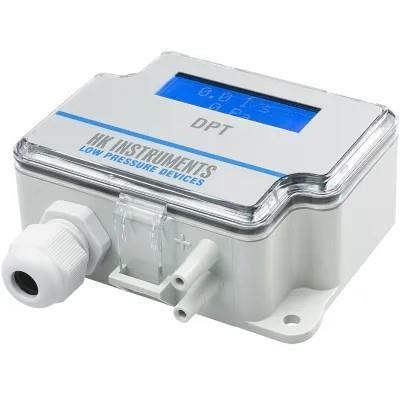

HK Instruments DPT7000-R8-LCD – Differential Pressure Sensor for Air High-range differential pressure transmitter with integrated LCD display Key Specifications Feature Specification Medium Air and other neutral, non-combustible gases Selectable Measuring Ranges 0…1,000 Pa, 0…1,500 Pa, 0…2,000 Pa, 0…2,500 Pa, 0…3,000 Pa, 0…4,000 Pa, 0…5,000 Pa, 0…7,000 Pa Output Signal 0–10 V DC or 4–20 mA (user-selectable) Supply Voltage 24 V DC / 24 V AC Display Integrated LCD for real-time differential pressure readings Typical Applications HVAC systems, ventilation duct pressure monitoring, fan and filter control, clean-room and industrial process measurement Mounting Wall or duct installation with compact enclosure Protection Class IP54 (typical, depending on installation) Summary The DPT7000-R8-LCD is a versatile, high-range differential pressure sensor designed for accurate air pressure monitoring up to 7,000 Pa. It offers eight user-selectable measuring ranges, a clear LCD for on-site readings, and dual selectable output signals (0–10 V DC or 4–20 mA). Operating on 24 V DC/AC, it is ideal for demanding HVAC and industrial applications requiring wide measurement capability and reliable performance.
