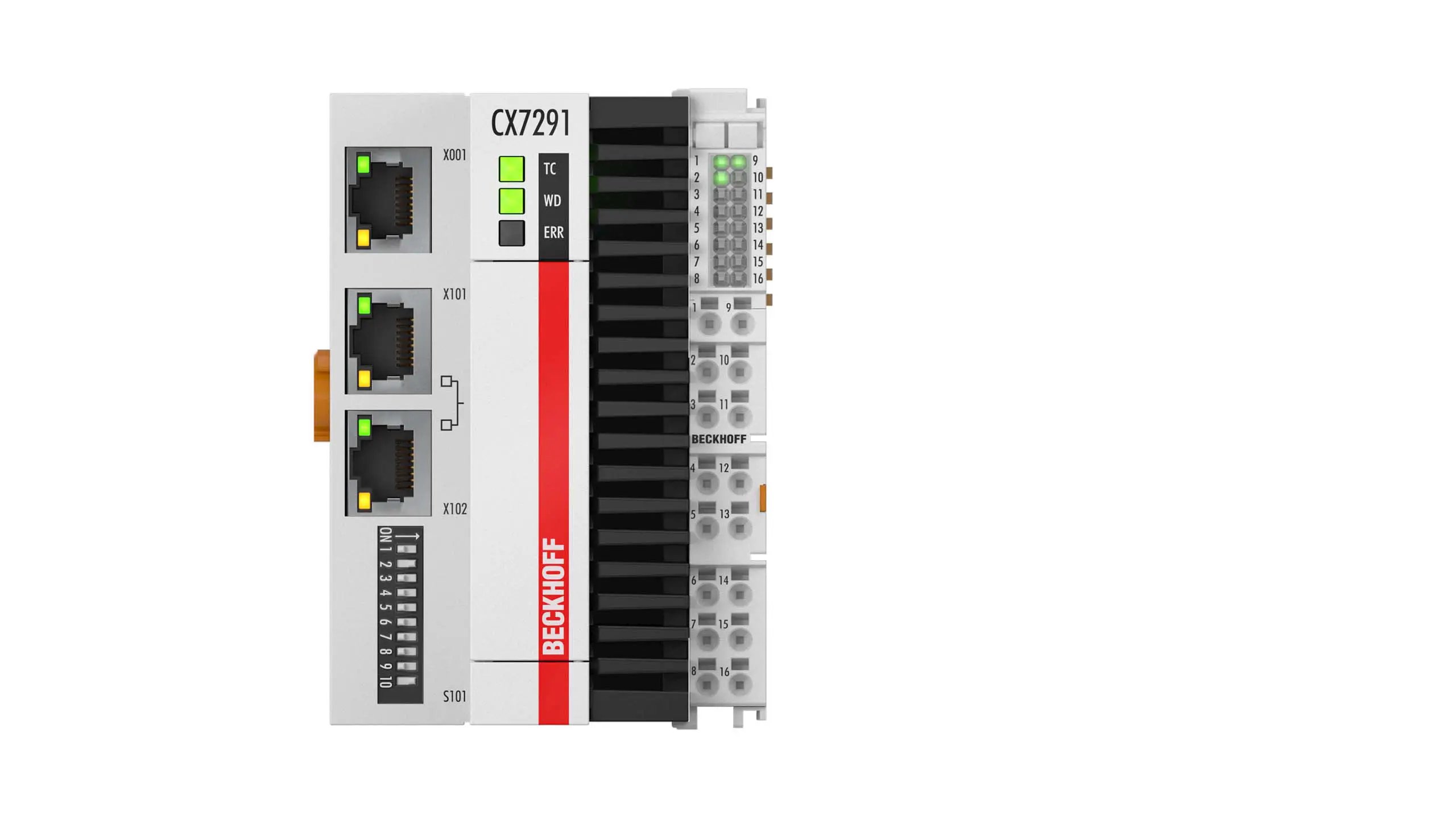

Beckhoff CX7291 – Embedded PC | Arm Cortex-A9, 720 MHz | BACnet/IP & Multi I/Os | TwinCAT 3 RTOS
Beckhoff CX7291 – Embedded PC | Arm Cortex-A9, 720 MHz | BACnet/IP & Multi I/Os | TwinCAT 3 RTOS

Beckhoff CX7291 – Embedded PC | Arm Cortex-A9, 720 MHz | BACnet/IP & Multi I/Os | TwinCAT 3 RTOS (CX7291)

Marka : Beckhoff
Fiyat : €264,00(KDV Dahil)
TL Fiyat : ₺14.068,53(KDV Dahil)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Satıcıya Soru Sor



Beckhoff CX7291 – Embedded PC | Arm Cortex-A9, 720 MHz | BACnet/IP & Multi I/Os | TwinCAT 3 RTOS

🟧 Ürün Açıklaması
Beckhoff CX7291, kompakt ve güvenilir bir embedded PC olup, Arm Cortex-A9 işlemci (720 MHz) ve tek çekirdek ile yüksek performans sunar. 8 çok fonksiyonlu giriş ve 4 çok fonksiyonlu çıkış ile esnek I/O konfigürasyonu sağlar. BACnet/IP protokol desteği ile HVAC, aydınlatma ve bina otomasyon sistemleri için uygundur. E-bus veya K-bus terminalleri ile otomatik I/O tanıma desteği sunar ve DIN rail montajına uygundur. TwinCAT 3 RTOS ile programlanabilir.







Technical data CX7291
Processor Arm® Cortex®-A9, 720 MHz
Number of cores 1
Flash memory slot for microSD card, 512 MB included (optionally expandable)
Main memory 512 MB DDR3 RAM (not expandable)
Number of inputs 8 multi-functional inputs (24 V DC)
Number of outputs 4 multi-functional outputs (24 V DC, 0.5 A, 1-wire technique)
1-second UPS integrated (1 MB on microSD card)
Interfaces 1 x RJ45 10/100/1000 Mbit/s, 1 x bus interface
Cooling passive
Bus interface 2 x RJ45 (switched) with BACnet/IP
Data transfer rates 10/100/1000 Mbit/s
Diagnostics LED 1 x TC status, 1 x WD, 1 x error
Clock internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days)
Operating system TwinCAT/RTOS
Control software TwinCAT 3 runtime (XAR) from TwinCAT 3.1 Build 4026 (XAE)
I/O connection E-bus or K-bus, automatic recognition
Power supply 24 V DC (-15%/+20%)
UPS OCT-capable no
Current supply E-bus/K-bus 2 A
Max. power consumption 4 W
Max. power consumption (with loading UPS) 7 W
Max. power consumption E-bus/K-bus 10 W (5 V/max. 2 A)
Dimensions (W x H x D) 71 mm x 100 mm x 73 mm
Weight approx. 220 g
Operating temperature -25…+60°C
Storage temperature -40…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection rating IP20
Included TwinCAT 3 Function TC1000 TwinCAT 3 ADS, TC1100 TwinCAT 3 I/O, TC1200 TwinCAT 3 PLC, TF4100 TwinCAT 3 Controller Toolbox, TF4110 TwinCAT 3 Temperature Controller, TF6255 TwinCAT 3 Modbus RTU, TF6340 TwinCAT 3 Serial Communication, TF6701 TwinCAT 3 IoT Communication (MQTT), TF6730 TwinCAT 3 IoT Communicator
Approvals/markings CE, UL
TwinCAT 3 platform level Basic (10); please see here for an overview of all the TwinCAT 3 platform level





Technical data Multi-functional I/Os | Digital input
Connection technology 1-wire
Nominal voltage 24 V DC (-15%/+20%)
Specification EN 61131-2, type 3
“0” signal voltage -3…+5 V
“1” signal voltage 11…30 V
Input filter configurable, default: 3 ms, min.: 10 µs





Technical data Multi-functional I/Os | Digital output
Connection technology 1-wire
Nominal voltage 24 V DC (-15%/+20%)
Load type ohmic, inductive, lamp load
Switching times TON: typ. 20 µs, TOFF: 10 µs
Short-circuit current typ. < 2 A
Breaking energy < 150 mJ/channel





Technical data Multi-functional I/Os | Counter
Connection technology 1 x up/down counter, 1 x up or down counter
Number of counters 1
Nominal voltage 24 V DC (-15%/+20%)
Specification EN 61131-2, type 3
“0” signal voltage -3…+5 V
“1” signal voltage 11…30 V
Limit frequency up/down counter: 20 kHz, up counter: 100 kHz
Counter depth 32 bit
Max. output current 24 V/0.5 A (short-circuit proof)
Special features set counter value, switch output, reload value





Technical data Multi-functional I/Os | Encoder
Technology incremental encoder interface
Nominal voltage 24 V DC (-15%/+20%)
Specification EN 61131-2, type 3
Encoder connection 1 x A, B: 24 V single-ended connection
Additional inputs latch input, 24 V DC
Limit frequency 250,000 increments (with 4-fold evaluation), equivalent 62.5 kHz
Counter depth 32 bit
Quadrature decoder 4-fold evaluation
Max. output current 24 V/0.5 A (short-circuit proof)
Special features latch function, software gate, set counter value, switch output, reload value





Technical data Multi-functional I/Os | Analog input
Number of inputs 2
Technology single-ended
Signal voltage 0…10 V
Internal resistance 500 kΩ
Input filter limit frequency 2 kHz
Resolution 12 bit (16 bit presentation)
Measurement error/uncertainty < ±0.3% (relative to full scale value)





Technical data Multi-functional I/Os | Pulse width modulation
Connection technology PWM output
Number of outputs 2
Nominal voltage 24 V DC (-15%/+20%)
Load type ohmic, inductive, lamp load
Max. output current 24 V/0.5 A (short-circuit proof)
Frequency 15 Hz…100 kHz
Duty factor 0…100% (TON > 20 ns, TOFF > 200 ns)
Short-circuit current typ. < 2 A
Special features separate frequency can be set for each channel
